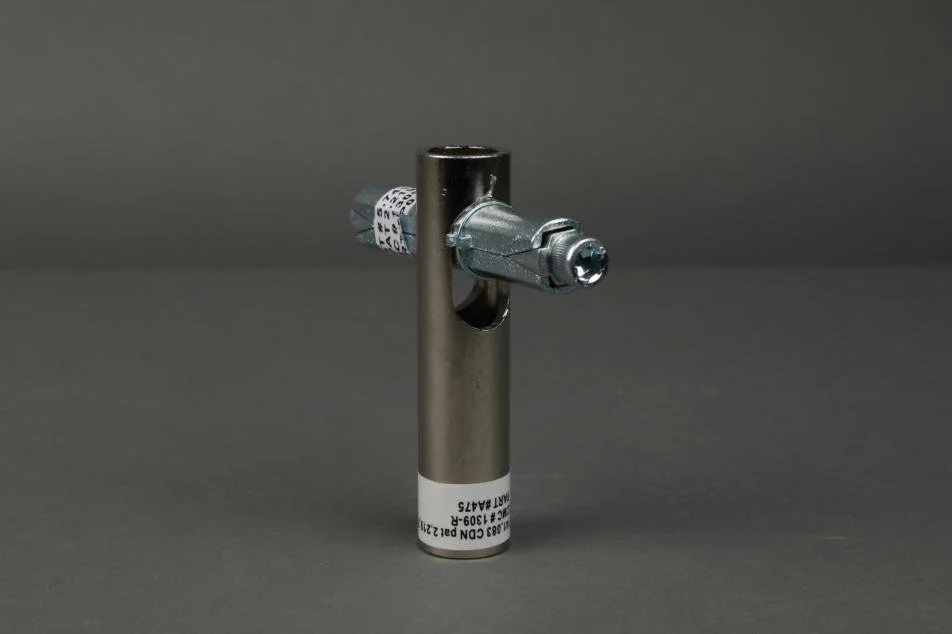

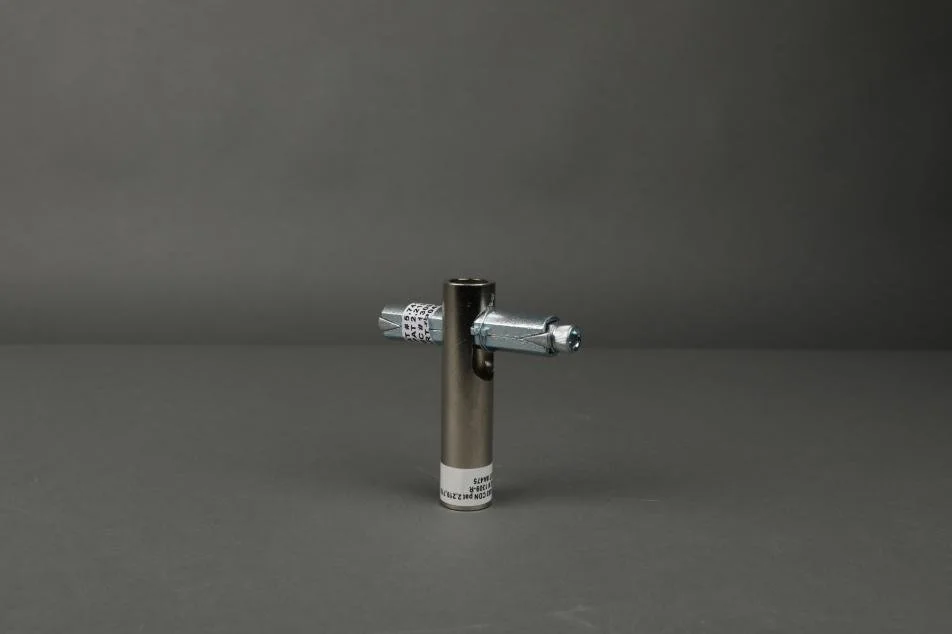

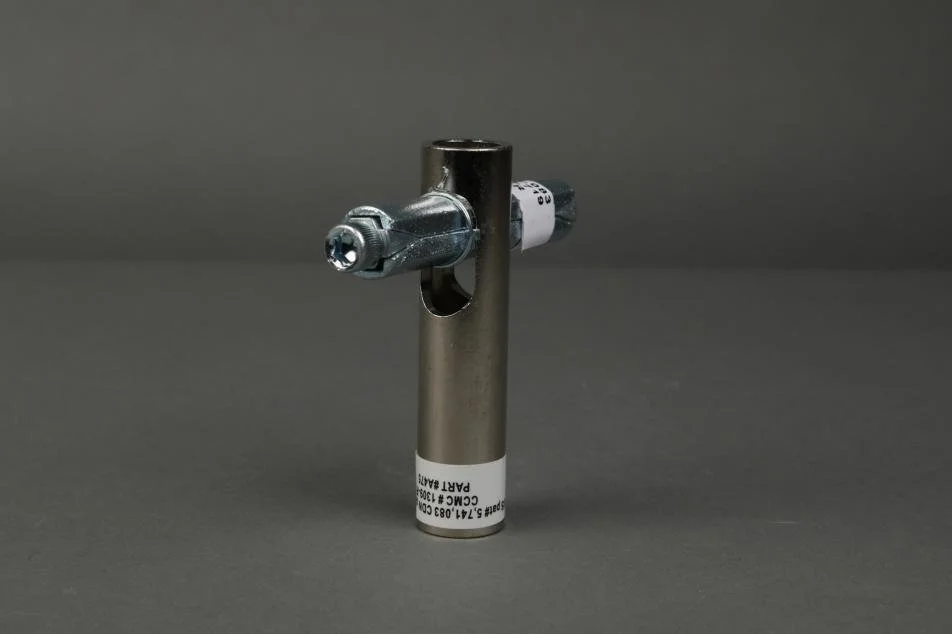

'Half-connector' with one pin at the end

Overall length 4 3/4"

One slot with 7/8" internal thread at other end

1 1/8 inch holes recommended for both pipe and pin

Pin hole center from end of pipe = 3 7/8" plus any exposed threaded rod from stand off to bottom of pipe (when connecting post to concrete and post to steel)

Pin hole center to center = 7 3/4" + exposed threaded rod (when you use two A475's + threaded rod to customize your own TIMBERLINX)

Also available in Stainless Steel (A475SS)

Includes (x1) Pin and (x1) Connector
